Mount
T-Pod
Observatories
UPAS
Star-GO
M-UNO D StarGo Plus
5.881,00 € (VAT excl.)
M-DUE - StarGo2 Pro
9.454,00 € (VAT excl.)
M-zeta StarGo Plus
4.890,00 € (VAT excl.)
Description
CONTENT PACKAGE
- Mount Head
- StarGO Plus
- Power Supply 12V/4 A
- StarGO control Keypad
- Keypad connection cable
- Metric Allen Wrench key set
- Losmandy clamp
- USB flash drive with manuals and software
- Attachment screws
- Documentation, warranty certificate
- T-Pod Plate

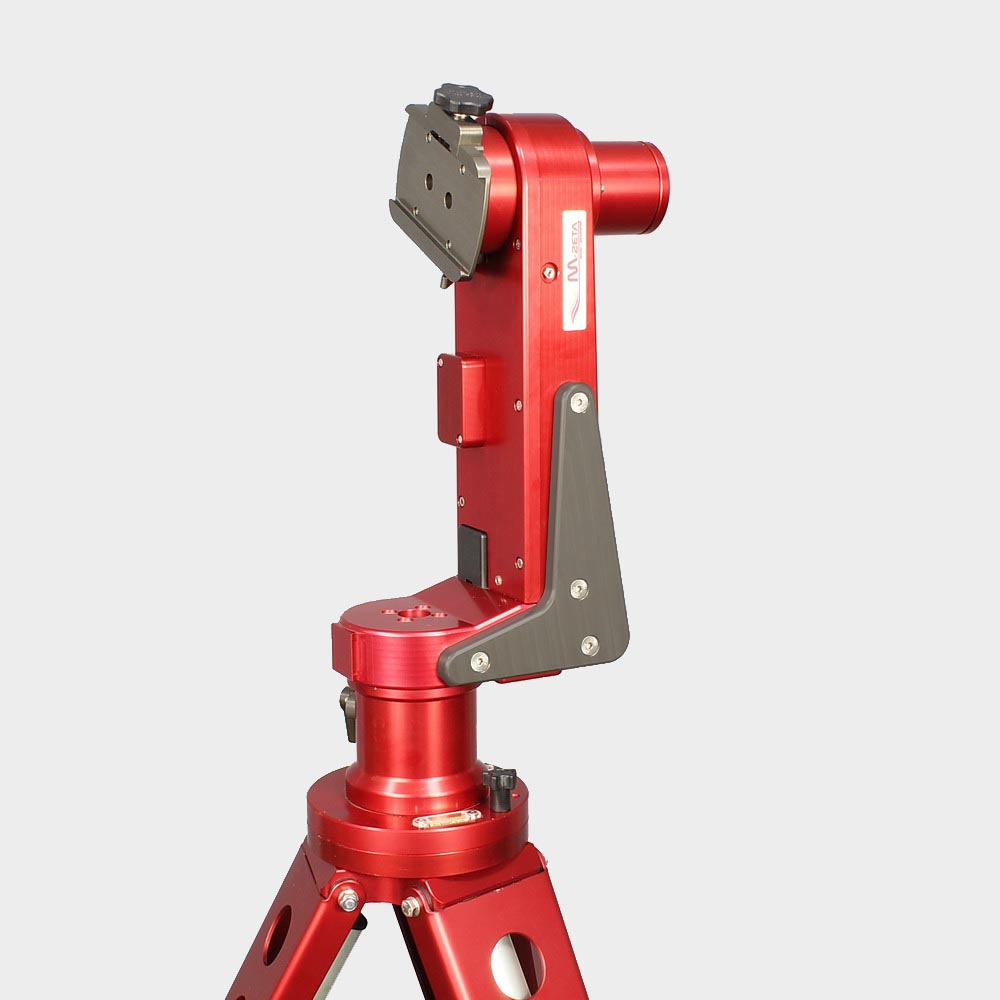

DescriptionM-Zeta is the Avalon Instruments Azimuthal mount. Strong, accurate, easy to use and well designed the M-Zeta bring the Avalon Instruments concept of the Belt Driven System to an Azimuthal mount. The M-Zeta can manage OTAs up to 20kg/44lb, does not need counterweight and is ready to use in a few minutes.
| Technical Data | |
| Type | Altazimuth mount |
| Weight | 12,2 kg (26,8 lb), without counterweight and bar |
| Capacity | 20 kg (44 lb) |
| Transmission system | All belts drive system based on four stages reducer.
All the movements are on ball bearings. No maintenance and no backlash system. Pulleys made with special polymer fiberglass charged and high precision toothed belts. |
| Construction Material | Anodized aluminium, worked out from single blocks with high precision 5 axis CNC machines |
| AR Axis | Heavy duty steel, diam. 35mm; 1 x dual ball bearings, diam. 62mm + 1 x roller bearing diam. 72mm + 2 x roller bearing diam. 45mm – On bearings clutch system |
| DEC Axis | Heavy duty steel, diam. 35mm; 1 x dual ball bearings, diam. 62mm + 1 x roller bearing diam. 72mm + 1 x roller bearing diam. 45mm – On bearings clutch system |
| GOTO system | StarGO Plus |
| Counterweight bar | No counterweight bar is required |
| Counterweight | No counterweight is required |
| Scope plate | Losmandy, 3″ (75mm), dovetail, single knob with 2 tightening points |
| Warranty | 2 years from the purchase date, extended to 5 years for the transmission system |
